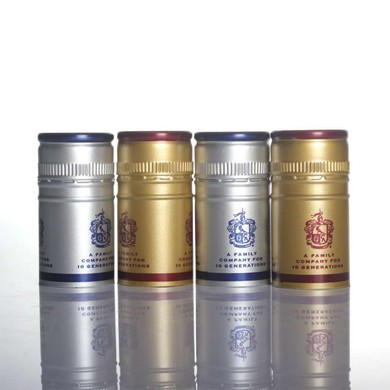

30x60mm ROPP Cap For Rum/Vodca/Wine With PE/Saranex/Tin Liner
Product Details
The aluminium closure is formed by passing aluminium sheet alloy through a 3 stage
metal pressing process.
The closure is decorated to the customer’s requirements using a combination of lacquers,
inks and varnishes.
A liner is inserted into the closure to provide a liquid tight seal and to preserve the
integrity of the bottle contents.
The top section of the closure containing the liner is attached to the bottom section by a
series of joins known as bridges. When the top is unscrewed, the bridges break, offering
visual evidence that the product has been opened.
Hot Tags: 30x60mm ropp cap for rum/vodca/wine with pe/saranex/tin liner, China, suppliers, manufacturers, factory, wholesale
1.Aluminium sheet
Aluminium sheet alloy reference No. 8011
· Thickness 0.23mm +/- 0.015mm
· Breaking load 125-155 N/m m²
· Elastic limit (Rp 0,2) 116-160 N/m m²
· Stretch (A50 min) 2%
2.Internal lacquer
An organosol lacquer is coated onto the internal surface of the screwcap which although
not in contact with the bottle contents complies with the U.S. 21 CFR FDA Regulation
Part 175.300 Clause
3.
3.1 Tin Saran
· Approved for food contact EU Dir 2002/72.
· PE-foam density: 250kg/m 3 +/-10%
· Diameter 28.6mm +/-0.2mm
· Thickness 2mm +/-0.2mm
3.2 Saranex
· Approved for food contact EU Dir 2002/72.
· Thickness:± 10%
· Diameter, disc: ≤40mm: ± 0.15 mm>40mm: ± 0.25 mm
material:
± 1.0 mm
Yantai Hicap Closures Co., Ltd. Product Specification PS-13
July 2012 -Version 1 Page 4 of 14
3.3 EPE
· Approved for food contact EU Dir 2002/72.
· Thickness:± 10%
· Diameter, disc: ≤40mm: ± 0.15 mm >40mm: ± 0.25 mm
Alternative liners to the above are available upon request in accordance with thecustomer’s end use requirements.
